Juki Kokochi DX-4000QVP Sewing Machine

368 PATTERNS AND 6 FONTS

Create infinite possibilities with built in stitch patterns and fonts. Stitch patterns include decorative, buttonhole, practical and quilt.

LARGE ILLUMINATED WORKSPACE

Dual LED lighting illuminate the large 22.4" x 13.6" workspace area with 12" throat space.

LARGE LCD TOUCHSCREEN

Change settings, choose stitches, and save patterns from the large LCD touchscreen. Additionally, you may access projects, watch video tutorials, browse the internet and more from you machine with the Juki Sewing Net! You can operate the large touchscreen just like a phone!

SNAP AND SEW FEED DOG SYSTEM

Effortlessly switch to a straight stitch sewing machine with the revolutionary interchangeable Single Needle System.

VISUALIZATION OF ADJUSTMENT VALUES

Changes in adjustments can be visualized with animations. Adjust the thread tension by sliding your finger over the scale in the touch panel. The animation changes according to the adjustment value.

STORE RECALL STITCH PATTERNS

The last 10 stitches are stored in the history. View illustrations of stitch patterns in the history to easily identify and select them with a single touch. The settings that differ from the defaults are highlighted in blue.

CHANGE COLOR TEMPERATURE OF LIGHTS

Adjust the color temperature of the bulb between daylight and soft white. This eliminates visibility difficulties with certain fabric and thread color combinations.

NOTIFICATION BEFORE BOBBIN THREAD RUNS OU

Adjust the color temperature of the bulb between daylight and soft white. This eliminates visibility difficulties with certain fabric and thread color combinations.

ADJUST THE PRESSER FOOT PRESSURE WITH THE EASILY ACCESSIBLE DIAL

In addition to the popular stitch width and length adjustments, easily adjust the presser foot pressure with a dial below the touch panel. Being able to change the presser foot pressure while sewing allows you to immediately respond to unexpected fabric feeding issues.

HAVE YOUR FAVORITE ACCESSORIES ALWAYS AT HAND

The auxiliary bed with accessory storage is the first among sewing machines with a 12" workspace. Keep your most often used accessories in their place and at your fingertips.

JUKI SMART FEED (BUILT IN DUAL FEED UNIT)

Using JUKI Smart Feed allows you to reduce uneven feeding and stretched stitching of thin fabric. Feeding can be stabilized simply by lowering the unit.

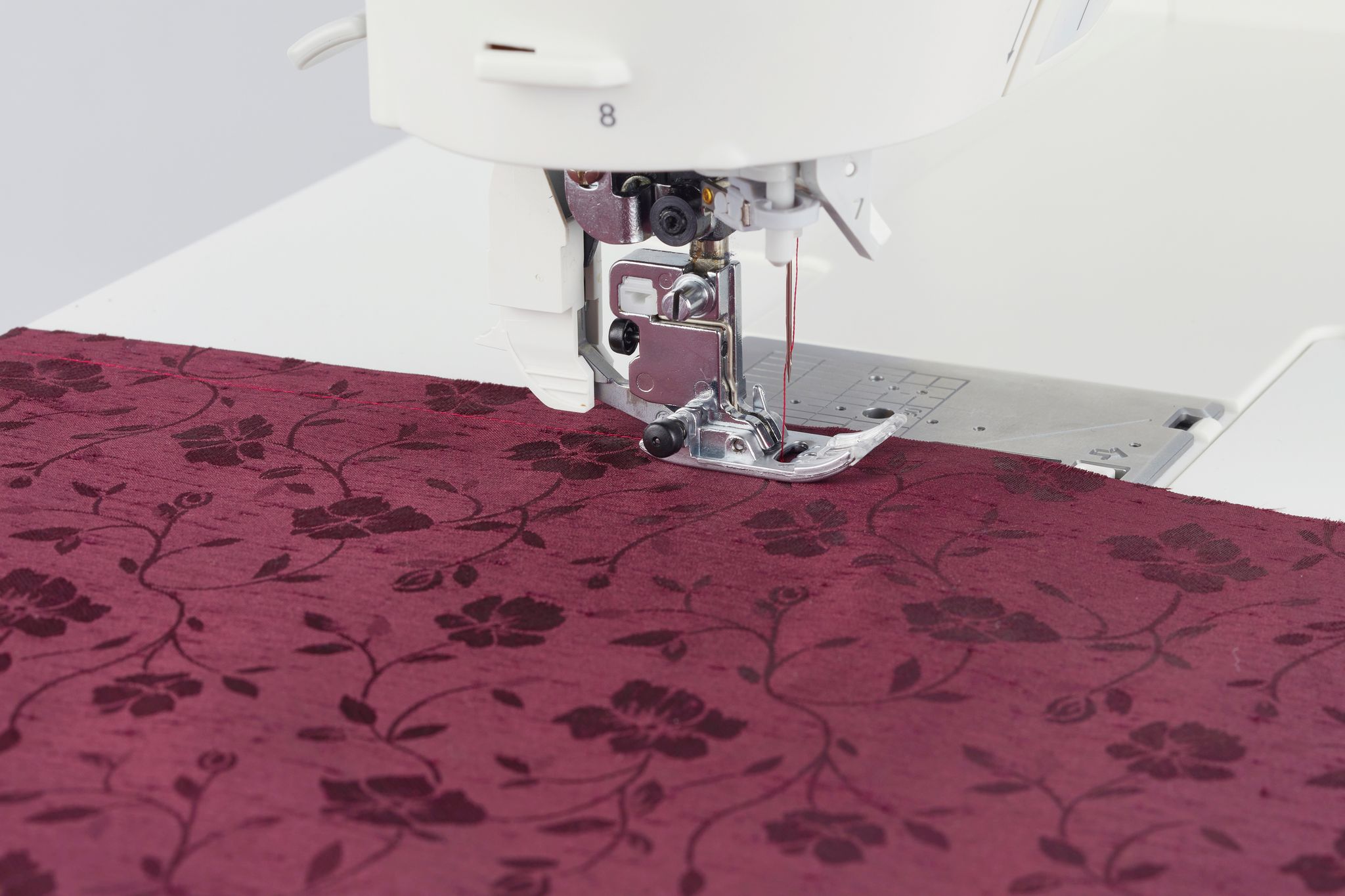

EASILY SWITCH TO STRAIGHT STITCH SEWING

By switching the machines throat plate and feed dogs to straight stitch, you can sew edges and sharp curves. Additionally, with this set up, you can prevent fabrics from being pushed into the needle hole when you begin sewing. You can easily change the presser foot, feed dog and throat plate to straight stitch versions.

ENJOY MORE VARIATIONS & APPLICATIONS WITH TAPERING

Increased ranges of the angle and direction settings have expanded the possibilities for sewing tapering. You can select the angle and direction for the beginning and end of tapering. You can set a stitch length in advance or store the length of the stitches that were sewn. By using the memory and inversion functions, star-shaped appliqués can be beautifully finished.

VIEW YOUTUBE VIDEOS OR BROWSE JUKI'S WEBSITE

Connect to the internet to access JUKI Sewing Net from your sewing machine! From the Sewing Net, you can access JUKI's homepage where you may view projects, product information, and more. In addition, you can watch instructional videos of projects and/or sewing machines from JUKI's YouTube channel. With built-in WiFi capabilities, the online JUKI’ s sewing world is yours to explore from your machine screen!

STEP BY STEP INSTRUCTIONS TO YOUR SMARTPHONE

You can view an instructional video on your smartphone by scanning the QR code of the operating procedure. Select the title of the operating procedure that you want to view and follow the step-by-step instructions show in animated video.

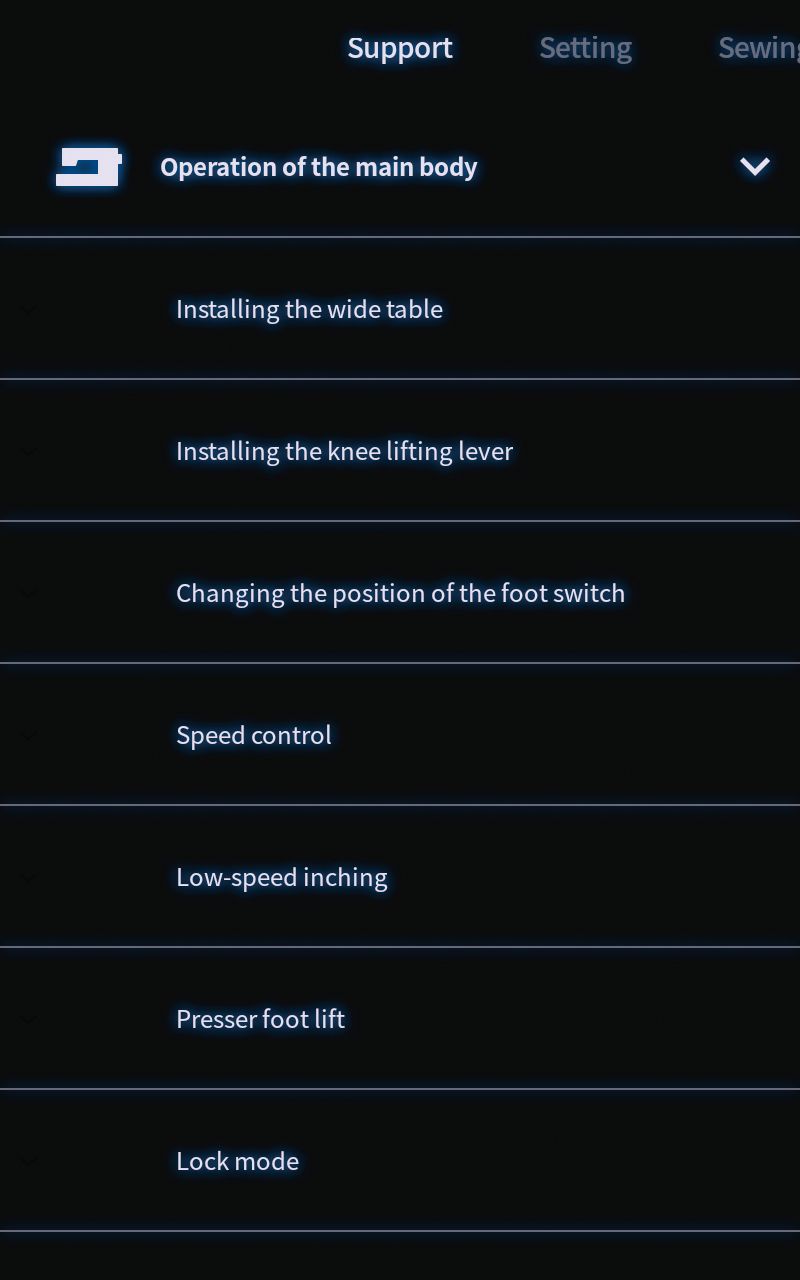

WORLD CLASS SUPPORT

Receive the best support on your machine or on to your smartphone. Never feel lost when you can access the support screen on your machine and receive the help that you need. Juki has got your back.

SPECIFICATIONS

• Control System: Computer
• Number of Stitch Paterns:368
• Number of Available Fonts:4
• Buttonhole: Automatic (Sensor System) with Clamping Plate
• Start / Stop Button: Green = Ready to start and/or while sewing. Red = Not ready to start. Orange = When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing.
• Maximum Stitch Speed: 1,050 sti/min
• Auto Thread Trimming: Yes
• Automatic Needle Threader: Automatic Needle Threader
• Thread Tension System: Automatic
• Automatic Lock Stitch: Automatic Lock Stitch and Thread Trimming
• Feed Mechanism: Box Feed Mechanism
• Juki Smart Feed: Yes
• Presser Foot Adjustment: Stepless Adjustment (Digital)
• Drop Feed: Yes
• Easy Bobbin Winding: Yes
• Bobbin Thread Winder: Bobbin Winder with Independent Motor
• Quick Bobbin Preparation: Yes
• Lights: 6 LED Lights
• Bobbin Thread Counter: No
• Bobbin Thread Run-Out Sensor: Yes
• Function to Straight-Line Stitching: Straight Throat Plate, Feed Dogs, and Presser Foot
• Micro-Lifter: Presser Foot Pressure Settings by Dial
• Free Arm: Yes
• Change in the Length/Width of Stitches: Dial System / LCD Numerical Display; Stitch Width: Max. 7mm; Stitch Length: Max. 5mm
• Number of Needle Positions (Straight Stitch/Other Than Straight Stitch): 37 / According to Pattern
• Pattern Reverse: Up / Down and Left / Right
• Twin Needle Sewing: Yes
• Elongation Pattern: Yes
• Yes (Twin Needle is Option)
• Adjustable Starting / Reverse Stitch Speed: Yes
• Needle Up/Down Button: Yes
• Low-Speed Inching Sewing: Yes
• Needle Stop Position Switching: Yes
• Presser Foot Pivot Function: Yes
• Save/Call of Patterns: 10 patterns
• Horizontal Presser Foot Holder Button: Yes
• Height of Lift of Presser Foot: (1 Step / 2 Steps): Button system = 6?8?10mm / 12mm; Lever system: 6mm / 12mm; Knee-lifting Lever system: 6?8?10mm / 12mm
• Lock Mode: Yes
• Operation Guide: Displayed as Animation, Illustrations, and Text
• Dimensions: 23.7”(W)×12”(H)×10.4”(D)
• Arm Size: 12”(W)×4.7”(H)
• Weight: 32.8lbs

ACCESSORIES

• Sewing Machine Cover: Soft Cover with Accessory Storage
• Auxiliary Bed: Yes
• Knee Lift: Lever
• Wide Table: Yes
• Foot Controller: Yes (with Separate Foot Switch)
• Standard Presser Foot (A)
• Straight Presser Foot(S)
• Zipper Presser Foot (B)
• Overcasting Presser Foot (C)
• Blind Stitch Presser Foot (D)
• Buttonhole Presser Foot (E)
• Manual Buttonhole Presser Foot (I)
• Open Toe Presser Foot (O)
• Patchwork Presser Foot (P)
• 1/4” Guide Foot
• Quilt Presser Foot (For Ruler) (Q)
• Edge Sewing Presser Foot (R)
• Zigzag Free Motion Quilting Set (Quilt presser foot (zigzag type)
• Presser Foot Holder Setscrew
• Adapter Shank
• Needle Setscrew
• Straight Throat Plate
• Straight Feed Dog
• Bobbin (4)
• Needle Set HA X 1 # 11 (1): # 14 (1): # 16 (1): for knit # 11 (1)
• Quilt Guide
• Auxiliary Spool Pin
• T-Shape Screwdriver
• Ripper
• Cleaning Brush
• Spool Cap (Large)
• Spool Cap (Middle)
• Spool Cap (Small)
• Foot Controller
• Knee Lift Lever
• Power Cord
• Wide Table
• Sewing Machine Cover
• Quick Reference Guide
• Accessory Box
